Basic Information
Product Name: Cheyenne Battery Pen #HM074
Net weight: 205g (single machine)
Size: 129mm*34mm
Motor: Coreless small motor (17*19.8mm, 9V10000 revolutions)
Interface: type-c interface (USB-C)
Structure: Integrated lithium battery pen structure, built-in lithium battery, the battery part can be rotated and removed;

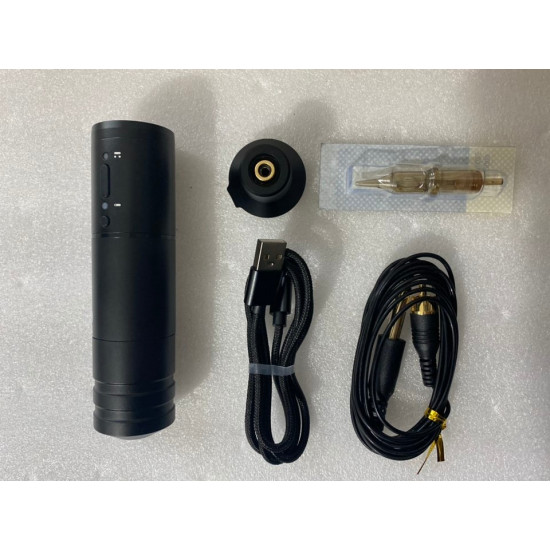

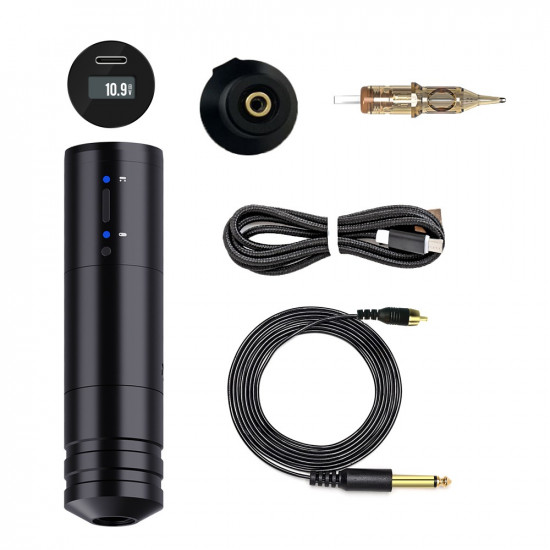

Configuration: Lithium battery tattoo pen + RCA conversion head + RCA soft silicone thin wire + USB data cable + accessory kit. In addition, spare batteries can be purchased separately.
Product parameter
1. Material quality: aluminum alloy;
2. Process: CNC integrated fine carving;
3. Color: black;
4. Travel distance: 0-0.38mm;
5. Gear position: adjustable voltage gear position 5-12V, short press 0.1V, long press 0.5V;
6. Display: high-definition LCD screen display on the top of the tattoo pen (voltage-power usage);
7. Applicable: Cheyenne card needle size, suitable for most integrated needles on the market;
8. Battery capacity: 1600mA (milliampere);
9. Working voltage: 5-12V;
10. Charging time: fast charge, can be fully charged in 1.5 hours without electricity;
11. Use time: The output current is 2.0A, under the condition of normal 8V voltage work, it can work continuously for more than 5 hours, the voltage is stable, and the intermittent use can be about 6-7 hours;
12. Starting voltage: with memory function, starting voltage is the voltage when it was turned off last time;
13. Strong start function: strong start when booting to ensure that the needle is not jammed and can drive the large needle;
Instructions for use

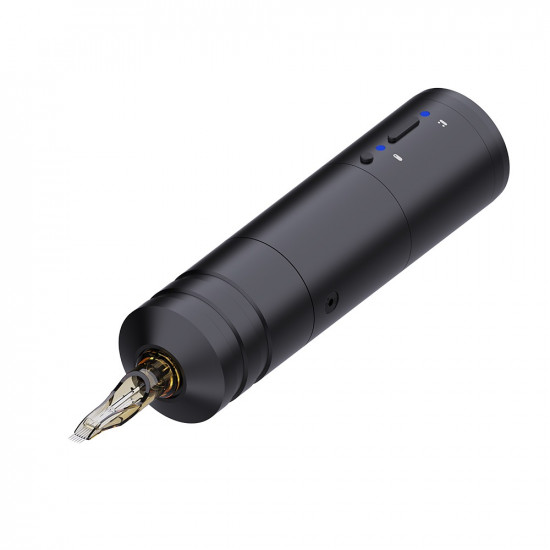

The device is a tattoo pen with a built-in lithium battery, which can be used directly without a foot pedal and hook line. It consists of two parts: 1. The upper half of the lithium battery power supply 2. The lower half of the tattoo pen; the middle part can be unscrewed to replace the upper half Lithium battery, or equipped with RCA conversion head for use, the specific functions are as follows:
1. Power on: Long press the black "●" button on the battery for 5 seconds to turn on, and then long press for 5 seconds to turn off;
2. Pause: During normal work, short press the black "●" key to pause the work, and short press again to resume the working state;
3. Adjust the voltage: adjust the voltage level by touching the up and down keys "∧" or "∨" position, short press once to adjust to 0.1V, long press to adjust to 0.5V;
4. Indicator light display: blue indicator light: there is electricity and is in a working state; red indicator light: needs to be charged;
5. Daily charging: The battery has an external charging port and can be charged with a type-c data cable;
6. Lithium battery warranty: The battery is guaranteed for one year, and the upper half of the lithium battery can be purchased separately for backup;
Lithium battery parameters
1. Input: The device can be charged by connecting the USB cable and power supply through the type-c charging port, and then the lithium battery has its own power storage function, and the battery capacity is 1600 mA;
2. Output: The output current is fixed at 2A. The lithium battery releases the power storage through the activation of the switch key, and supplies power to the built-in motor, thereby starting the tattoo pen and driving the needle out. Output voltage range: (5-12V), 5V is the lowest voltage, 12V is the highest voltage;
Product selling point
①. The operation is simple, convenient to use, one pen can work, no need to pedal hook cord power supply;
②. High-end display, with a high-definition LCD display on the top, rich display content, and the voltage value is clear at a glance;
③. 1600 mA capacity, 8V battery life can be up to 5 hours or more, power can be output stably;
④. Equipped with a small hollow cup motor, with sufficient power, high cost performance and long service life, meeting the needs of tattoo artists for various patterns;
⑤. Two intricately-carved cut edges and non-slip design on the handshake part, long-term use is not tired, sweating and not slippery
⑥. The upper half of the spare lithium battery can be purchased separately for replacement, which is convenient and hassle-free, longer battery life, and more worry-free use;
⑦. The factory comes with RCA adapter and RCA thin wire, which is very cost-effective. It can be used with lithium battery pens, or can be operated with traditional power supply, hook wire and foot pedal, which is convenient and versatile;
⑧. The card needle port is a standard Cheyenne size, which is suitable for most integrated needles on the market;
⑨. The main body of the pen is equipped with detachable screws, and the pen has a detachable structure, making it easy to disassemble and replace accessories;
⑩. Enhanced output, battery 2.0A output, to ensure that the power of the lithium battery pen is coordinated, and the secant and fog can be easily achieved;
11. Adjust the needle position with built-in stainless steel high-grade positioning steel ball, adjust the gear position accurately, the sound is clear and the use experience is good;
12. The charging port is equipped with a type-c interface, which makes charging more stable, safe and secure;
13. Dual-mode voltage adjustment system, short press for 0.1V adjustment, long press for 0.5V adjustment, more convenient for tattoo artists;
